JASH Cast Iron Straight Edges are widely used for setting up and leveling machinery and for checking and spotting bearing surfaces during hand-scraping operations. Properly supported, they may be used with various indicating devices to check surface flatness of large machined areas like Surface Table. Machine Tables and Beds, Machine ways etc.

Salient Features

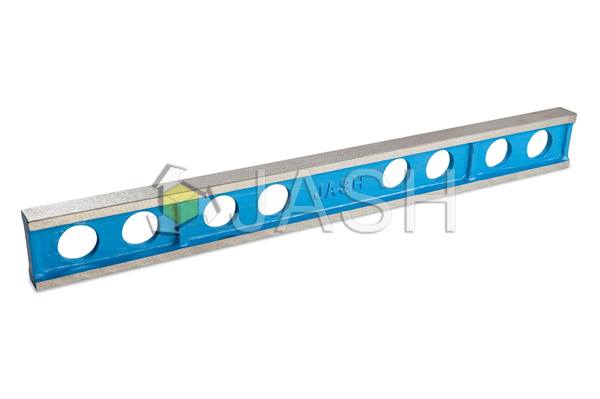

  • Offered in two types viz Bow shaped or Camel Back Type and I-Section or Parallel Type, in standard sizes generally as per IS: 5268.
  • Bow shaped Straight Edges are provided with pads on their bow for supporting Engineer’s level.
  • Made from close grained plain cast iron conforming to Grade FG; 220 of IS: 210 – 1978.
  • Casting stress – relieved to remove internal stresses.
  • Offered in three Grades of accuracies viz Grades 0, 1 and 2, standard sizes, dimensions, flatness and parallelism tolerances are as stated in table.
  • Straightness accuracy checked by Electronic level, computer print out of the contour of working surfaces is furnished.
  • Offered in hand scraped surface finish for Grades 0 and 1, Smooth machined / ground / scraped surface finish for Grade 2.
  • Flatness of side faces: Any 300 mm length flat within 25 microns for Grade 0 and 1 and within 50 microns for Grade 2, subject to the maximum tolerance on flatness over the whole length, as under:-
    For straight edges up to and including 4000 mm length – 50 microns for Grades 0 and 1 and 100 microns for Grade 2.
    For straight edges longer than 4000 mm – 100 microns for Grades 0 & 1 and 200 microns for Grade 2
  • Squareness of working surfaces and side faces when checked with side face laid on Grade 1 surface plate-
    For Grade 0 and 1 : within 8 microns per 25 mm
    For Grade 2 : within 15 microns per 25 mm
  • Parallelism of side faces :
    For Grade 0 and 1 : Not exceeding 30 microns per 300 mm and 60 microns over the whole length.
    For Grade 2 : Not exceeding 60 microns per 300 mm and 120 microns over the whole length
  • Two numbers Grade 1 parallel straight edges of the same length can be offered as matched pair, at extra cost, ensuring equality of overall depth within the tolerance on parallelism for the respective length of straight edge.
  • Actual dimensions of straight edges may be even more than those stated in the table below.
  • No two straight edges of the same length will have any of the dimensions exactly the same, except in case of two numbers parallel straight edge made specially as a matched pair wherein only the overall depth shall be equal within the tolerance on parallelism for the respective length.


Standard Sizes of Straight edges (Parallel / Bow Shaped)

Length of Straight EdgeDimensions of Camel Back Type Straight EdgesDimensions of Parallel Type Straight EdgesTolerances on flatness & parallelism
Min. width of working surfaceMinimum overall depthMinimum flange thicknessMin. width of working surfaceMinimum overall depthMinimum flange thicknessGrade - 0Grade - 1Grade - 2
100045180 16351001251020

Note: SPECIAL SIZES OFFERED ON REQUEST: 600, 750, 1200, 1500, 1800, 2500 and 3600 mm long.
