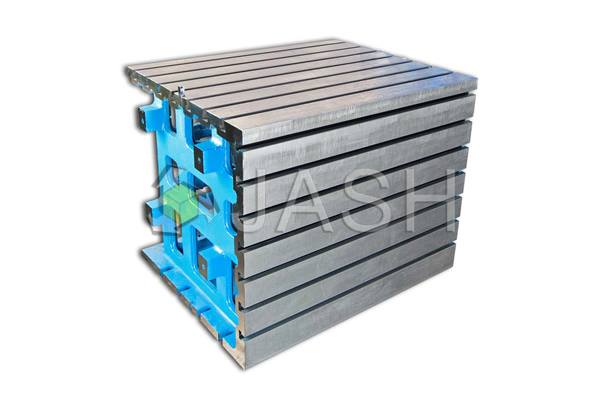

JASH Large Size Cast Iron Box Table (Individual / Stacked) serves as a versatile tool for layout machine set – ups, tooling and inspection of large jobs. They can also be used as right angles and squares.
Salient Features
- Made from close grained plain cast iron conforming to grade FG 220 of IS: 210 (equivalent to GG20/FT20/30-A). Higher grades also offered on request.
- Casting stress relieved to relieve internal stresses.
- These can be made in single piece or in two sections that can be used either single or in combination for comprehensive applications for jobs or fixtures.
- Customized and specifically designed as per loading requirement.
- The vertical working surface is machined finish having flatness and perpendicularity between table face and top face with vertical working surface as per DIN 875.
- The T-slots on vertical face as well as on top face provided along and / or across the length, as required.
Standard Sizes of Large Size Box Table & Riser Blocks
| Standard Sizes for Cast Iron Riser Block (Size L x B x H) in mm | Standard Sizes for Cast Iron Box Table (Size L x B x H) in mm |
|---|---|
| 300 x 140 x 500 | 300 x 400 x 300 |
| 500 x 200 x 500 | 300 x 400 x 600 |
| 600 x 300 x 500 | 450 x 600 x 900 |
| 1000 x 350 x 1000 | 600 x 750 x 1200 |
| 1200 x 800 x 400 | 750 x 700 x 900 |
| 2000 x 800 x 400 | 750 x 900 x 1000 |
| - | 750 x 900 x 1800 |
